Item: iGW-MCS

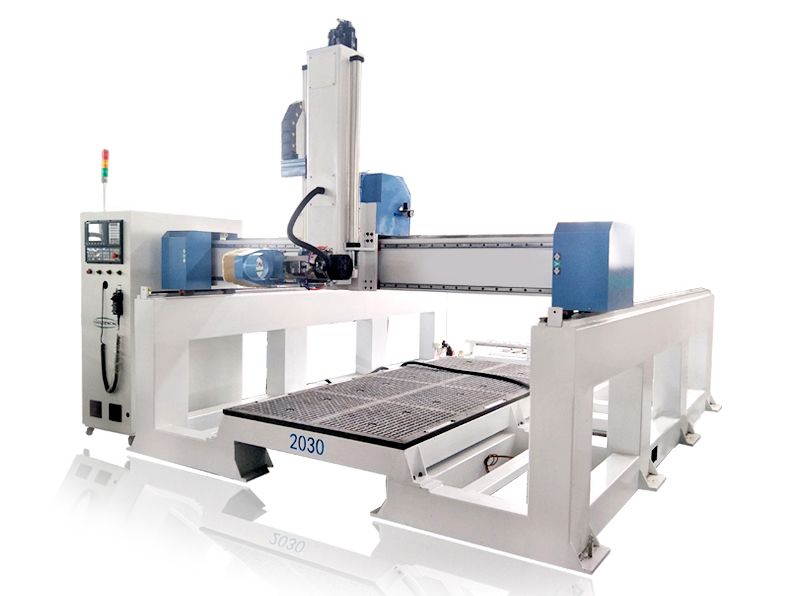

The split type polyfoam 3D CNC foam cutting machine is a CNC carving machine designed for foam processors who are subject to transportation, site restrictions or format restrictions, and is mainly used in the aviation industry, woodworking industry, craft gifts, film and television.
3D sculptures such as props, building models, electronics, CAD/CAM industrial molds.
The plug-in polyfoam 4 axis CNC foam Cutting machine is easy for transport, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations.
Hot applications include:
>Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.
>Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;
>Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.
Technical Data
X, Y Axis Working Area | mm | 2000*3000/2000*4000 |
Z Axis Working Height | mm | 400-1200 optioned |
Positioning Accuracy | mm | 0.05 |
Re-positioning Accuracy | mm | 0.02 |
Body Structure | Welding Body | |
X, Y Axis Structure | Linear Guide Rail, Gear Rack | |
Z Axis Structure | Linear Guide Rail, Screw | |
Max. Running Speed | mm/min | 50000 |
Max. Working Speed | mm/min | 20000 |
Spindle | kw | 9.0kw Air-cooling ATC Spindle（Optioned） |
Spindle RPM | rpm/min | 24000 |
Working Voltage | V/Hz | AC 380V±10%/50-60Hz |
Machine Weight | kg | 3000/3300 |
Configuration
Spindle | HQD Air-cooling Spindle (Italy HSD Spindle Optioned) | Machine Body | Split-type Welding Body, Fixed with Screw |
Worktable | Iron Cast Worktable (Vac-sorb Worktable with T-slot Optioned) | Control System | Taiwan LNC System（Taiwan SYNTEC System Optioned） |
Stepper Motor | Japan YASKAWA (Leadshine and Yako Optioned） | Frequency Converter | Taiwan DELTA |
Gear Rack | Taiwan HIWIN | Reducer | Japan SHIMPO |
Electric Components | France SCHNEIDER | Limited Switch | Japan OMRON |
Tool Setting | High-precision Automatic Tool Setting Device (Optioned) | Lubrication System | Automatic Lubrication Device (Optioned) |
